auto-zero pressure transmitter
Price: |
300.0~400.0 USD |
Payment Terms: |
T/T,WU |
Place of Origin: |
Shanghai, China (Mainland) |
Product Detail
Model No.:
PT124B-123D
Production Capacity:
3000pieces/month
Delivery Date:
within 7 working days
Pressure range:
0...6MPa to 0...150MPa(0-87...
Accuracy:
+/-1FSO ;
Electric connector:
5PIN,6PIN,
Sensitivity due to temperature change:
+/-0.05%FS Max
Means of Transport:
Air
Packing:
Special Carton
Brand Name:
ZHYQ
Output:
4-20mA
Thread:
1/2″-20UNF,M14*1.5,M18*1.5(...
Zero Shift due to temperature change:
+/-0.04%FS Max
You can only use one button to get automatic calibration and amendment to avoid consuming a lot of manpower ,time and expensive calibrating equipment.
Description

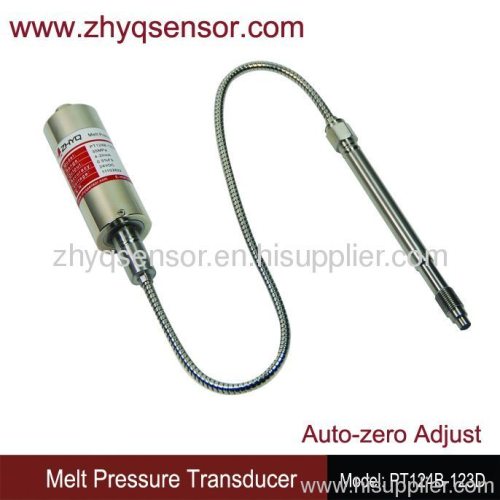

PT124B-123D/123DT Series Melt Pressure Transducer(Flexible stem & Auto-zero adjust )can measure the pressure and temperature in one point. The model PT124B-123DT is with thermocouple. 4-20mA amplified signal output ,can be connected with PLC, suitable for pressure measuring and controlling in melt fluid medium, such as the plastic & polymer in the process equipments.
Youcan only use one button to get automatic calibration and amendment to avoid consuming a lot of manpower ,time and expensive calibrating equipment .
Application:
Chemical fiber & spinning equipment
Plastic and rubber , polyester process equipment
Other pressure measurement and control
Feature
High-standard quality
Auto-Zero functionality
No span or zero pots
Simple installation
Completely interchange similar import products
Internal 80% calibration
Excellent stability
Specification
| |
Output: | 4-20mA |
Accuracy: | ±1%FS ( including linearity , repeatability &Hysteresis ) |
Input voltage: | 14~36V DC |
Repeatability: | ±0.2% FSO |
Construction: | Four-arm bonded foil wheatstone bridge straingauge |
Load Resistance: | 0-1100 ohms |
Overload pressure: | 2×FSO |
Internal ShuntCalibration (R-cal): | 80% FSO±1% |
Insulation Resistance: | 1000 megohms @ 50Vdc |
Standard wettedparts: | 15-5PH |
Electronic operatingtemperature: | -25℃ -85℃ |
Zero Shift due to temperature change: | ±0.04%FS Max |
Sensitivity due to temperature change: | ±0.05%FS Max |
Maximal Diaphragm Temp: | 0~400℃ |
Thermocouple: | J,K,E,PT100 Optional(PT124B-123DT) |
Electric connection: | 5PIN, 6PIN |
Process connection: | 1/2″-20UNF, M14×1.5, M18×1.5(Customerdesign) |
